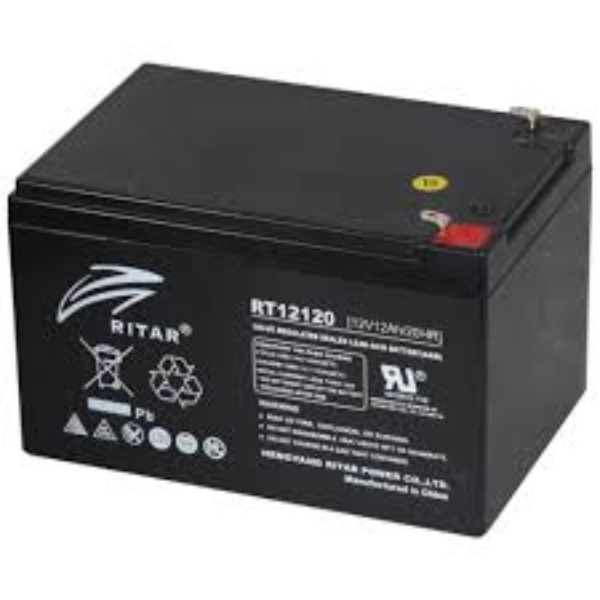

RITAR RT12120(12V12Ah) RT Series is a General Purpose Battery

RITAR RT12120(12V12Ah) RT Series is a General Purpose Battery

Add to wishlist
Compare

Cells / Voltage:6 cells / 12V

Nominal Capacity:12Ah (20hr-rate to 1.75V/cell @ 25°C)

Weight / Design Life:Approx. 3.50 kg (±5.0%) / 6~8 years (Float charging)

100.00د.إ 150.00د.إ

Compare
Category:
Brand: Ritar
Custom Image

RITAR RT12120(12V12Ah) RT series is a general purpose battery with 6~8 years design life in float service. It meets with IEC, JIS, BS ,GB/T and YD/T standards. With advanced AGM valve regulated technology and high purity raw material, the RT series battery maintains high consistency for better performance and reliable standby service life. It is suitable for UPS/EPS, medical equipment, emergency light and security system applications.

Category: Brand:
Parameter Value / Details
Cells / Voltage 6 cells / 12V
Nominal Capacity 12Ah (20hr-rate to 1.75V/cell @ 25°C)
Weight / Design Life Approx. 3.50 kg (±5.0%) / 6~8 years (Float charging)
Internal Resistance Approx. $17.0\text{ m}\Omega$
Terminal F1 / F2
Discharge / Short Circuit Current Max Discharge: 120A (5 sec) | Short Circuit: 590A
Max. Charging Current 3.6 A
Reference Capacity $\text{C}_3$: 9.29Ah | $$\text{C}_$: 10.5Ah | $*$\text{C}_{1$: 11.2Ah | $**$\text{C}_{$: 12.0Ah
Standby Use Voltage 13.7V~13.9V @ 25°C (-3mV/°C/Cell)
Cycle Use Voltage 14.6V~14.8V @ 25°C (-4mV/°C/Cell)
Operating Temp. Range Discharge: -20~60°C | Charge: 0~50°C | Storage: -20~60°C
Normal Operating Temp. 25°C ± 5°C
Self Discharge Stores up to 6 mos @ 25°C before recharge; ratio <3%/month @ 25°C
Container Material A.B.S. UL94-HB (UL94-V0 Optional)
