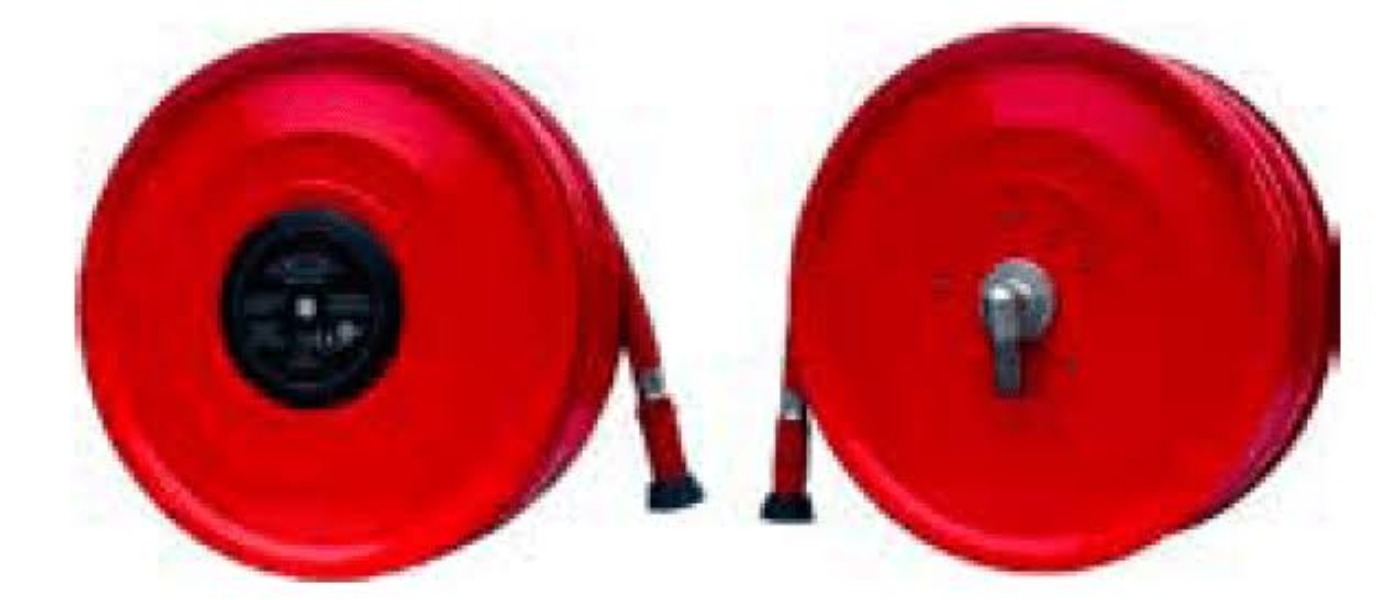

IMSECUR Manual and Swing Arm Fire Hose Reel (Models: IMHR-08-A, IMHR-07-B)
LPCB certified to BS EN 671, the IMSECUR Manual and Swing Arm Fire Hose Reel offers high-strength 1.2mm electro-galvanized steel construction, 12 bar working pressure, and a >11.2m throw range for critical commercial and industrial fire protection.
100.00د.إ 150.00د.إ
The IMSECUR Manual and Swing Arm Fire Hose Reel provides robust, continuous fire protection for commercial, industrial, and residential buildings. Designed for wall-mounted installation in permanent locations or recessed mounting directly into hose reel cabinets, this unit complies fully with BS EN 671 standards for LPCB certification.
Engineered for durability and high performance under pressure, the hose reel discs are constructed from 1.2mm electro-galvanized steel sheets with reinforced ribs to prevent twisting during deployment. The drum is coated with a corrosion-resistant red powder coating (chrome/stainless steel finishes available). Each unit features a high-grade red hose with a 12 bar working pressure and a 42 bar bursting pressure. Supplied with a plastic jet/spray shut-off nozzle and a 1″ brass inlet stop valve in a chrome finish, it delivers an effective throw range exceeding 11.2 meters at 2 bar for rapid emergency fire response.
| Parameter / Feature | Model IMHR-08-A | Model IMHR-07-B |
| Brand & Model |
IMSECUR / IMHR-08-A |
IMSECUR / IMHR-07-B |
| Hose Size (ID × L) |
19 mm × 30 m |
25 mm × 30 m |
| Hose ID / OD |
19 mm / 25 mm |
25 mm / 32 mm |
| Dimensions (L × W × D) |
600 × 555 × 210 mm |
600 × 580 × 260 mm |
| Working / Burst Pressure |
12 bar / 42 bar |
12 bar / 42 bar |
| Throw Range (at 2 bar) |
> 11.2 m |
> 11.2 m |
| Nozzle Flow Rate (2 / 6 bar) |
> 24 L/min / 41 L/min |
> 39 L/min / 68 L/min |
| Nozzle Dia. / Inlet |
6 mm (Jet/Spray) / 3/4″ (19 mm) |
8 mm (Jet/Spray) / 1″ (25 mm) |
| Disc Material & Finish |
1.2 mm Electro-galv steel, Red powder coating |
1.2 mm Electro-galv steel, Red powder coating |
| Inlet Stop Valve |
1″ Chrome-plated brass |
1″ Chrome-plated brass |
| Hose Details |
Red, >1.5 kN/m adhesion |
Red, >1.5 kN/m adhesion |
| Mounting |
Wall-mounted or Recessed Cabinet |
Wall-mounted or Recessed Cabinet |
| Certifications |
BS EN 671, LPCB, UKAS |
BS EN 671, LPCB, UKAS |
| Optional Upgrades |
Chrome/SS drum, Brass nozzle, Black hose, Guide |
Chrome/SS drum, Brass nozzle, Black hose, Guide |
