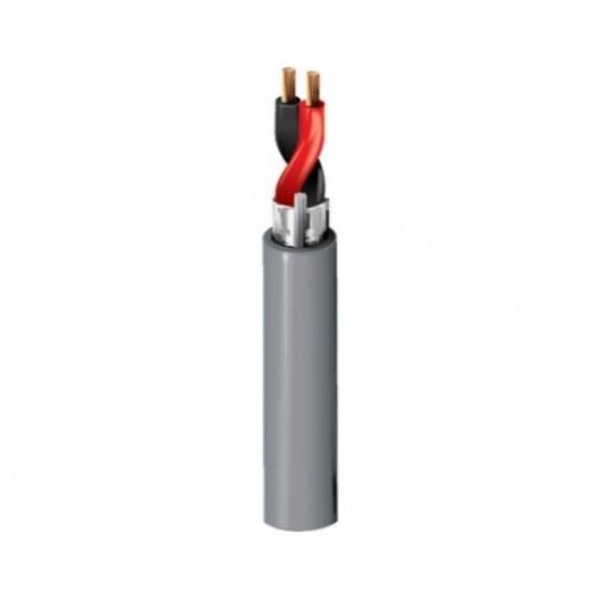

RAMCRO R1272-BMS-HFFR-TC Cable
- Formation: 1 Pair
- Section: 18 AWG
- Conductor: Tinned copper wire, 7-strand
- Insulation: Thermoplastic Low Smoke Zero Halogen Free (LSZH/FRNC)
- Colour Code: Black, White
100.00د.إ 150.00د.إ
Category:
Brand: Ramcro
RAMCRO R1272-BMS-HFFR-TC Cable
RAMCRO BMS-HFFR-TC Cable is a premium flame-retardant, LSZH/FRNC insulated multi-conductor cable designed for reliable Building Management System (BMS) installations. Featuring a single-pair, collectively screened construction with an LSZH/FRNC sheath, it delivers excellent signal protection, low smoke emission, and enhanced fire safety. Ideal for BMS, security systems, sound, audio, safety, control, and instrumentation applications in commercial and industrial environments.
| Specification | Details |
|---|---|
| Product Name | RAMCRO R1272 DATA LAN M-BUS Cable |
| Cable Type | BMS-HFFR-TC Cable |
| Formation | 1 Pair |
| Conductor Cross Section | 18 AWG |
| Conductor Material | 7 Strand Tinned Copper Wire |
| Conductor Diameter | 1.1 mm |
| Insulation Material | Thermoplastic Low Smoke Halogen Free (LSZH/FRNC) |
| Insulation Diameter | 2.2 mm |
| Colour Code | Black, White |
| Individual Screen | N.A. |
| Wrapping | Minimum 1 Layer of 0.023 mm Plastic Tape |
| Collective Screen | 0.026 mm Aluminium/PETP Tape with Tinned Copper Drain Wire |
| Inner Sheath | N.A. |
| Armour | N.A. |
| Outer Sheath | Thermoplastic LSZH (FRNC), Purple RAL 4005 |
| Overall Cable Diameter | 6 mm |
| Operating Voltage | 300 V |
| DC Resistance @ 20°C | Max. 25.2 Ω/km |
| Insulation Resistance @ 20°C | Min. 25 MΩ·km |
| Nominal Mutual Capacitance | Max. 125 pF/m |
| Inductance | Max. 1 mH/km |
| Core/Core Test Voltage | 2000 V |
| Core/Screen Test Voltage | 2000 V |
| Operating Temperature | -30°C to +80°C |
| Installation Temperature | -30°C to +80°C |
| Minimum Bending Radius | 8 × Cable Diameter |
| Maximum Pulling Tension | 78 N/mm² |
| Approximate Weight | 49 kg/km |
| Standard Cable Length | 305 m |
| Fire Propagation (Single Cable) | IEC 60332-1 |
| Fire Propagation (Bunched Cables) | IEC 60332-3 |
| Smoke Density | IEC 61034 |
| Halogen Acid Gas Emission | Zero |
| Acidity (pH) & Conductivity | IEC 60754-2 |
| Sunlight Resistance | UL 1581 Section 1200 |
| Low Voltage Directive | 2014/35/UE |
| Cable Printing | RAMCRO ITALY R1272 DATA LAN CABLE – M-BUS – 1PR 18 AWG SCREENED LSZH (FRNC) 300V 75°C IEC 60332-3-24 – MAS0105HXEDN-T-RB – PROD.WEEK/18 + BATCH + METER MARKING |
