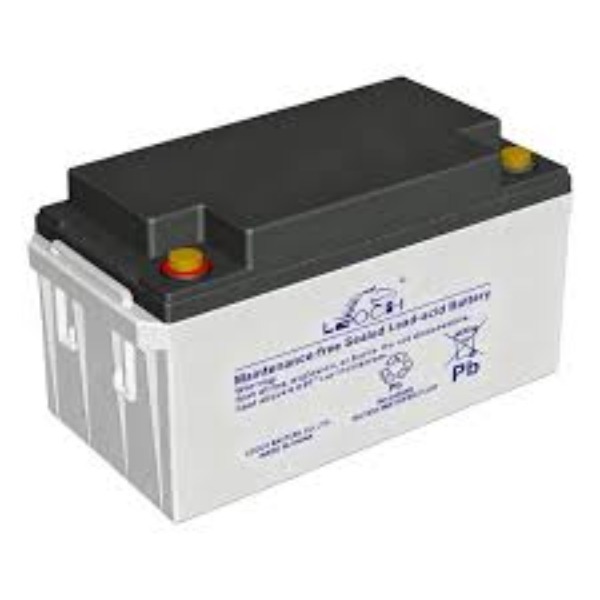

LEOCH LP12-65 (12V65Ah) LP SERIES-GENERAL PURPOSE BATTERY
Rated Voltage:12V
Nominal Capacity(25℃) C ,1.80V/cell:65Ah
100.00د.إ 150.00د.إ
LEOCH LP12-65 (12V65Ah) LP SERIES-GENERAL PURPOSE BATTERY
The YUASA SWL1100 (FR) SWL Series Valve Regulated Lead Acid (VRLA) Battery is a high-performance, maintenance-free AGM battery engineered for reliable backup power and high-rate discharge applications. Designed with advanced lead-calcium alloy technology and micro-porous glass mat separators, it delivers exceptional power capacity, long service life, and consistent performance. Ideal for UPS systems, emergency backup power, electric power systems (EPS), alarm & security systems, communication equipment, DC power supplies, and industrial control systems. Manufactured in certified facilities meeting IATF 16949, ISO 9001, ISO 14001, and ISO 45001 standards, and compliant with IEC 60896, EU Battery Directive, UL, and CE requirements, the YUASA SWL1100 (FR) offers dependable, maintenance-free power for critical applications.
| Specification | Details |
|---|---|
| Battery Type | Valve Regulated Lead Acid (VRLA) AGM Battery |
| Rated Voltage | 12V |
| Nominal Capacity (25°C) | 65Ah (C₁₀, 1.80V/cell) |
| Dimensions (L × W × H) | 348 × 167 × 178 mm (13.7 × 6.57 × 7.01 in) |
| Total Height | 178 mm (7.01 in) |
| Approximate Weight | 19.2 kg (42.3 lbs) |
| Terminal Type | T6 (M6) |
| Container Material | ABS (UL94 HB or V-0 Optional) |
| Short Circuit Current | 1495A |
| Internal Resistance (25°C) | Approx. 7 mΩ (Fully Charged) |
| Discharge Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Charge Temperature Range | -20°C to 40°C (-4°F to 104°F) |
| Storage Temperature Range | -15°C to 40°C (5°F to 104°F) |
| Recommended Operating Temperature | 25 ± 3°C (77 ± 5°F) |
| Maximum Charging Current | 0.3C |
| Standby Charge Voltage | 2.25–2.30 V/Cell |
| Cycle Charge Voltage | 2.35–2.40 V/Cell |
| Temperature Compensation (Standby) | -3 mV/Cell/°C |
| Temperature Compensation (Cycle) | -5 mV/Cell/°C |
| Capacity at 40°C (104°F) | 103% |
| Capacity at 25°C (77°F) | 100% |
| Capacity at 0°C (32°F) | 86% |
| Self-Discharge Rate | ≤3% per month at 25°C (77°F) |
| Storage Recommendation | Can be stored up to 6 months at 25°C before recharge. Higher temperatures require more frequent charging. |
