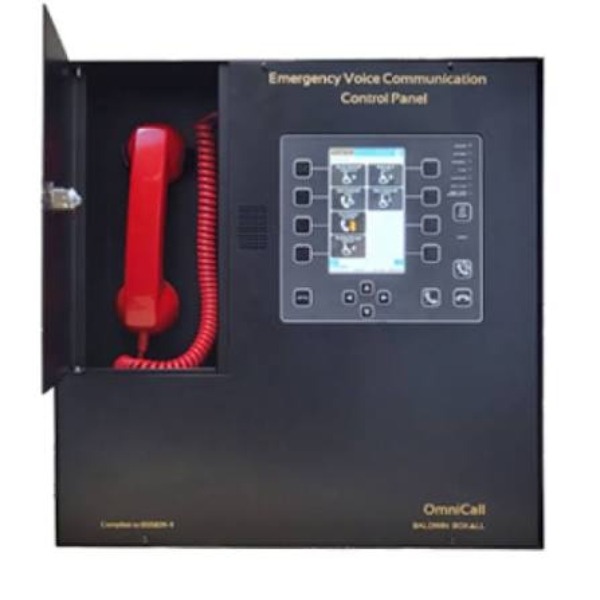

Baldwin Boxall OmniCall The System
Next-Generation Emergency Voice Communication (EVC) System delivers flexible and cost-effective emergency communication with support for radial and loop remotes on a single system. Its non-polarity-dependent 2-core wiring simplifies installation and enables easy retrofitting using existing cabling, reducing installation time and costs.
| Specification | Control Panel | Disabled Refuge | Advanced Refuge | Fire Telephone | Emergency / Steward Telephone | Combined DRS & Fire Telephone |
|---|---|---|---|---|---|---|
| Product Codes | OCCP32 | OCBRG (Green) | OCBARG | OCACRFP (Red push door), OCARFL (Red lock door) | OCASGP (Green push door), OCASGL (Green lock door) | OCCCPR (Red push door), OCCCRL (Red lock door) |
| Power Supply | 85–264V AC | 15–36V DC | 15–36V DC | 15–36V DC | 15–36V DC | 15–36V DC |
| Power Consumption | 75W | 30mA @ 24V | 70mA @ 24V | 30mA @ 24V | 30mA @ 24V | 30mA @ 24V |
| Humidity Range | 95% RH, non-condensing | 0–90% RH, non-condensing | 0–90% RH, non-condensing | 0–90% RH, non-condensing | 0–90% RH, non-condensing | 0–90% RH, non-condensing |
| Operating Temperature Range | -5°C to +40°C | -5°C to +40°C | -5°C to +40°C | -5°C to +40°C | -5°C to +40°C | -5°C to +40°C |
| Indicators | 5″ TFT plus fault LEDs | Status | Status | Status | Status | Status |
| Remote Fault Signalling | NC fault output | Via control panel | Via control panel | Via control panel | Via control panel | Via control panel |
| Dimensions (W × H × D) | 430 × 430 × 190 mm | 150 × 90 mm | 134 × 134 × 64 mm | 130 × 350 × 80 mm | 130 × 350 × 80 mm | 130 × 395 × 80 mm |
| Bezel Dimensions | 470 × 470 mm | N/A | 154 × 154 mm | 170 × 390 mm | 170 × 390 mm | 170 × 435 mm |
| Bezel Cut-Out Dimensions | 440 × 440 mm | N/A | 136 × 136 mm | 138 × 358 mm | 138 × 358 mm | 138 × 403 mm |
| Knockouts / Cable Entries | 20 mm × 30 mm (Top) | 20 mm | 20 mm & 25 mm | 20 mm | 20 mm | 20 mm |
| Battery / Power Backup | Sized per project | Powered from system | Powered from system | Powered from system | Powered from system | Powered from system |
| Finish / Colour | RAL 9005 | RAL 6024 | RAL 6024 | RAL 3020 | RAL 6024 | RAL 3020 Fire Telephone / RAL 6024 Refuge Remote |
| Backbox Required | N/A | Double-gang backbox, minimum 47 mm deep (not supplied as standard) | N/A | N/A | N/A | N/A |
| Application | EVC Control & Monitoring | Disabled Refuge Communication | Advanced Refuge Communication | Fire Telephone Communication | Emergency / Steward Communication | Combined Disabled Refuge & Fire Telephone System |
| System Type | Emergency Voice Communication (EVC) | Disabled Refuge System (DRS) | Advanced Refuge System | Fire Telephone System | Emergency / Steward Telephone System | Combined DRS & Fire Telephone System |
